Java 的 fork-join 框架实例备忘 | 隔叶黄莺 Yanbin Blog

2015-12-29 | 阅读(1,201)

Java 7 首次引入了 fork/join 框架，但一直未曾直接尝试. 而且基本上也很少在实际项目中直接写 fork-join 的代码，在我们使用第三方组件时倒是间接会接触到 fork/join 框架。譬如 Akka 的 fork-join-executor, sbt 执行测试用例时也是默认 fork/join 并发执行。fork-join 可以帮助我们把计算任务粒度细化，并更有效的利用多 CPU 内核。

fork-join 与 map-reduce 有些相妨，在 Java 7 时代我其实是忽视了它的存在。目今正在了解 Java 8 的 parallelStream 时，因为它的底层实现也是 fork/join, 所以有兴致去稍加体验一下。fork/join 的算法简单来讲就是递归对半去细化计算任务，及到不能细化时由多内核(线程)去计算被拆分的任务，最后反方向把结果汇总。

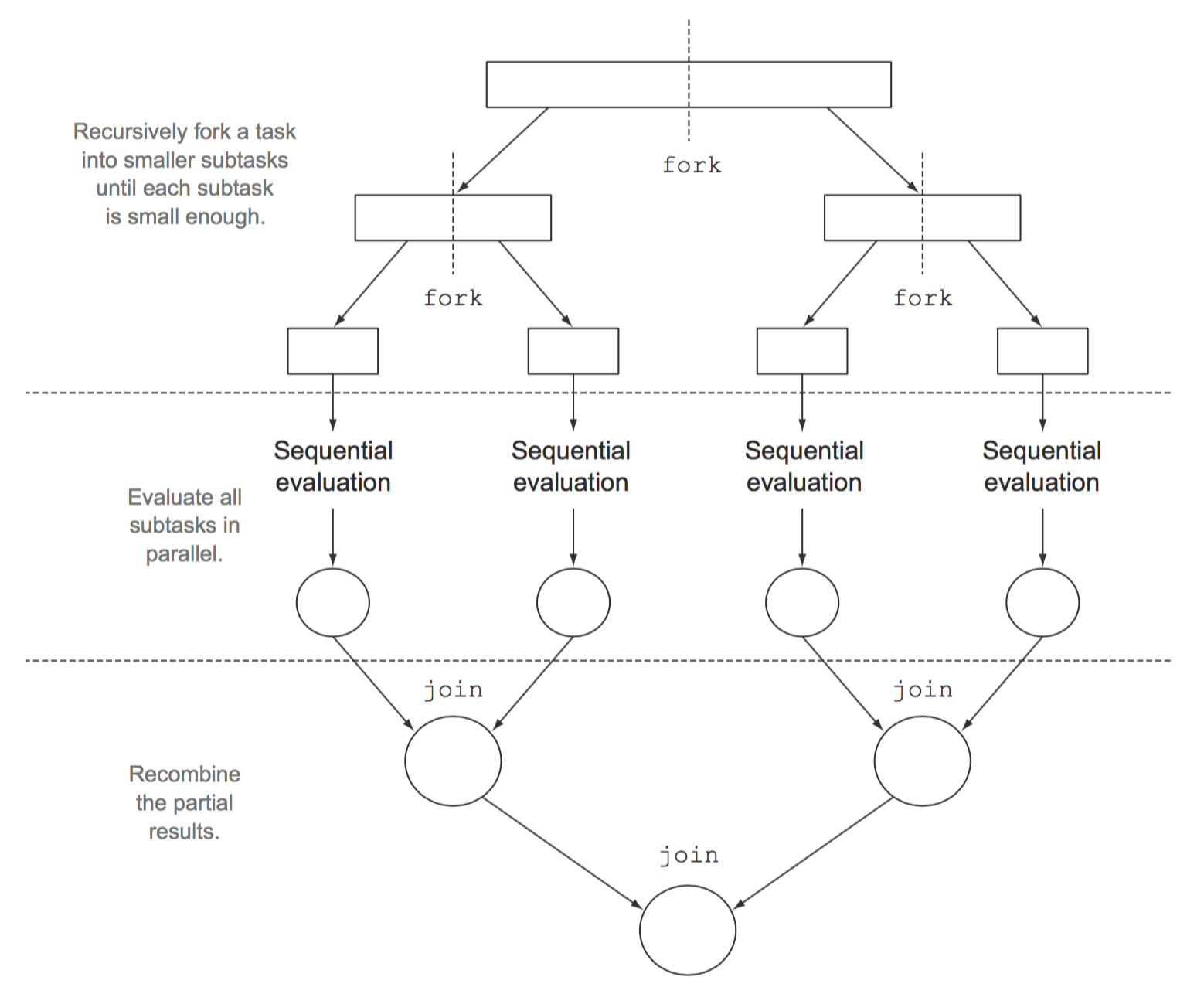

下面是从《Java 8 IN ACTION》中截的一个说明 fork/join 的处理过程

fork-join-framework

以下是代码演示实现，更有助于理解 fork/join 是如何工作的

import java.util.concurrent.ForkJoinPool;
import java.util.concurrent.ForkJoinTask;
import java.util.concurrent.RecursiveTask;
import java.util.stream.LongStream;

public class ForkJoinDemo {

  public static void main(String[] args) {
    long[] numbers = LongStream.rangeClosed(1, 100000L).toArray();
    ForkJoinTask<Long> task = new ForkJoinSumCalculator(numbers);
    Long result = new ForkJoinPool().invoke(task);
    System.out.printf("Final result: %s, CPU cores: %s\n", result,
      Runtime.getRuntime().availableProcessors());
  }

}


class ForkJoinSumCalculator extends RecursiveTask<Long> {

  private final long[] numbers;
  private final int start;
  private final int end;

  public static final long THRESHOLD = 10_000L;

  public ForkJoinSumCalculator(long[] numbers) {
    this(numbers, 0, numbers.length);
  }

  private ForkJoinSumCalculator(long[] numbers, int start, int end) {
    this.numbers = numbers;
    this.start = start;
    this.end = end;
  }

  @Override
  protected Long compute() {
    int length = end - start;
    if (length <= THRESHOLD) {
      return computeSequentially();
    }

    //fork schedules task on new thread, compute reuses the same thread
//    return new ForkJoinSumCalculator(numbers, start, start + length / 2).fork().join()
//           + new ForkJoinSumCalculator(numbers, start + length / 2, end).compute();

    ForkJoinSumCalculator leftTask = new ForkJoinSumCalculator(numbers, start, start + length / 2);
    leftTask.fork();

    ForkJoinSumCalculator rightTask = new ForkJoinSumCalculator(numbers, start + length / 2, end);

    Long rightResult = rightTask.compute();
    Long leftResult = leftTask.join();

    return leftResult + rightResult;
  }

  private long computeSequentially() {
    System.out.printf("Summation from %s to %s, calculated by thread %s\n", start, (end - 1), Thread.currentThread().getName());
    long sum = 0;
    for (int i = start; i < end; i++) {
      sum += numbers[i];
    }
    return sum;
  }
}

import java.util.concurrent.ForkJoinPool;

import java.util.concurrent.ForkJoinTask;

import java.util.concurrent.RecursiveTask;

import java.util.stream.LongStream;

public class ForkJoinDemo {

public static void main(String[] args) {

long[] numbers = LongStream.rangeClosed(1, 100000L).toArray();

ForkJoinTask<Long> task = new ForkJoinSumCalculator(numbers);

Long result = new ForkJoinPool().invoke(task);

System.out.printf("Final result: %s, CPU cores: %s\n", result,

Runtime.getRuntime().availableProcessors());

}

class ForkJoinSumCalculator extends RecursiveTask<Long> {

private final long[] numbers;

private final int start;

private final int end;

public static final long THRESHOLD = 10_000L;

public ForkJoinSumCalculator(long[] numbers) {

this(numbers, 0, numbers.length);

}

private ForkJoinSumCalculator(long[] numbers, int start, int end) {

this.numbers = numbers;

this.start = start;

this.end = end;

}

@Override

protected Long compute() {

int length = end - start;

if (length <= THRESHOLD) {

return computeSequentially();

}

//fork schedules task on new thread, compute reuses the same thread

// return new ForkJoinSumCalculator(numbers, start, start + length / 2).fork().join()

// + new ForkJoinSumCalculator(numbers, start + length / 2, end).compute();

ForkJoinSumCalculator leftTask = new ForkJoinSumCalculator(numbers, start, start + length / 2);

leftTask.fork();

ForkJoinSumCalculator rightTask = new ForkJoinSumCalculator(numbers, start + length / 2, end);

Long rightResult = rightTask.compute();

Long leftResult = leftTask.join();

return leftResult + rightResult;

}

private long computeSequentially() {

System.out.printf("Summation from %s to %s, calculated by thread %s\n", start, (end - 1), Thread.currentThread().getName());

long sum = 0;

for (int i = start; i < end; i++) {

sum += numbers[i];

}

return sum;

}

fork/join 的任务要继承算 RecursiveTask<T>，并在 compute() 方法同时决定任务的细化粒度和如何合并结果.

leftTask.fork(); 将把任务委派给新的线程执行
rightTask.compute(); 将重用本线程完成进一步任务，因为没必要把当前线程释放再取用. 写成 rightTask.fork().join(); 也能出正确的结果

注: 以上代码只是一个对 fork/join 过程的演示，在该代码的 fork/join 并未能提升计算性能。因为每个计算任务并不耗时，拆分任务(fork) 和合并计算结果(join) ，以及创建使用多线程这些辅助过程本身都重于实际的计算任务。所以 fork/join 的目的是要拆分耗时的任务，充分发挥多内核的优势来更有效的完成整体计算。

看下输出结果：

Summation from 18750 to 24999, calculated by thread ForkJoinPool-1-worker-4
Summation from 6250 to 12499, calculated by thread ForkJoinPool-1-worker-0
Summation from 93750 to 99999, calculated by thread ForkJoinPool-1-worker-1
Summation from 87500 to 93749, calculated by thread ForkJoinPool-1-worker-7
Summation from 56250 to 62499, calculated by thread ForkJoinPool-1-worker-6
Summation from 43750 to 49999, calculated by thread ForkJoinPool-1-worker-2
Summation from 81250 to 87499, calculated by thread ForkJoinPool-1-worker-5
Summation from 68750 to 74999, calculated by thread ForkJoinPool-1-worker-3
Summation from 37500 to 43749, calculated by thread ForkJoinPool-1-worker-2
Summation from 75000 to 81249, calculated by thread ForkJoinPool-1-worker-1
Summation from 50000 to 56249, calculated by thread ForkJoinPool-1-worker-7
Summation from 0 to 6249, calculated by thread ForkJoinPool-1-worker-0
Summation from 12500 to 18749, calculated by thread ForkJoinPool-1-worker-4
Summation from 25000 to 31249, calculated by thread ForkJoinPool-1-worker-5
Summation from 31250 to 37499, calculated by thread ForkJoinPool-1-worker-2
Summation from 62500 to 68749, calculated by thread ForkJoinPool-1-worker-3
Final result: 5000050000, CPU cores: 8

fork/join 使用的是 ForkJoinPool 线程池，默认数量为机器的逻辑内核数即 Runtime.getRuntime().availableProcessors() 的值，我的机器是 8 核的。从输出中看到了任务被分拆为每次计算 10000 个数字，分别于线程池中的 ForkJoinPool-1-workerX(0-7) 来执行。

fork/join 的关键就是如何拆分任务和怎么把每个计算结果合并。

未例中可以启用注释掉的代码

return new ForkJoinSumCalculator(numbers, start, start + length / 2).fork().join()
       + new ForkJoinSumCalculator(numbers, start + length / 2, end).compute();

1 2	return new ForkJoinSumCalculator(numbers, start, start + length / 2).fork().join() + new ForkJoinSumCalculator(numbers, start + length / 2, end).compute();

看起来似乎是完全一样的，但执行后的输出却令我有些迷惑

Summation from 0 to 6249, calculated by thread ForkJoinPool-1-worker-3
Summation from 6250 to 12499, calculated by thread ForkJoinPool-1-worker-1
Summation from 12500 to 18749, calculated by thread ForkJoinPool-1-worker-2
Summation from 18750 to 24999, calculated by thread ForkJoinPool-1-worker-2
Summation from 25000 to 31249, calculated by thread ForkJoinPool-1-worker-2
Summation from 31250 to 37499, calculated by thread ForkJoinPool-1-worker-1
Summation from 37500 to 43749, calculated by thread ForkJoinPool-1-worker-1
Summation from 43750 to 49999, calculated by thread ForkJoinPool-1-worker-1
Summation from 50000 to 56249, calculated by thread ForkJoinPool-1-worker-1
Summation from 56250 to 62499, calculated by thread ForkJoinPool-1-worker-1
Summation from 62500 to 68749, calculated by thread ForkJoinPool-1-worker-1
Summation from 68750 to 74999, calculated by thread ForkJoinPool-1-worker-1
Summation from 75000 to 81249, calculated by thread ForkJoinPool-1-worker-1
Summation from 81250 to 87499, calculated by thread ForkJoinPool-1-worker-1
Summation from 87500 to 93749, calculated by thread ForkJoinPool-1-worker-1
Summation from 93750 to 99999, calculated by thread ForkJoinPool-1-worker-1
Final result: 5000050000, CPU cores: 8

基本只有 2-3 个线程参与计算，而不像前面的所有线程，这和顺序有关系了，必须是先 fork, compute, 再 join, 即基本过程是

leftTask.fork();
rightTask.compute();
leftTask.join();

本文链接 https://yanbin.blog/java-fork-join-framework-memo/, 来自隔叶黄莺 Yanbin Blog
